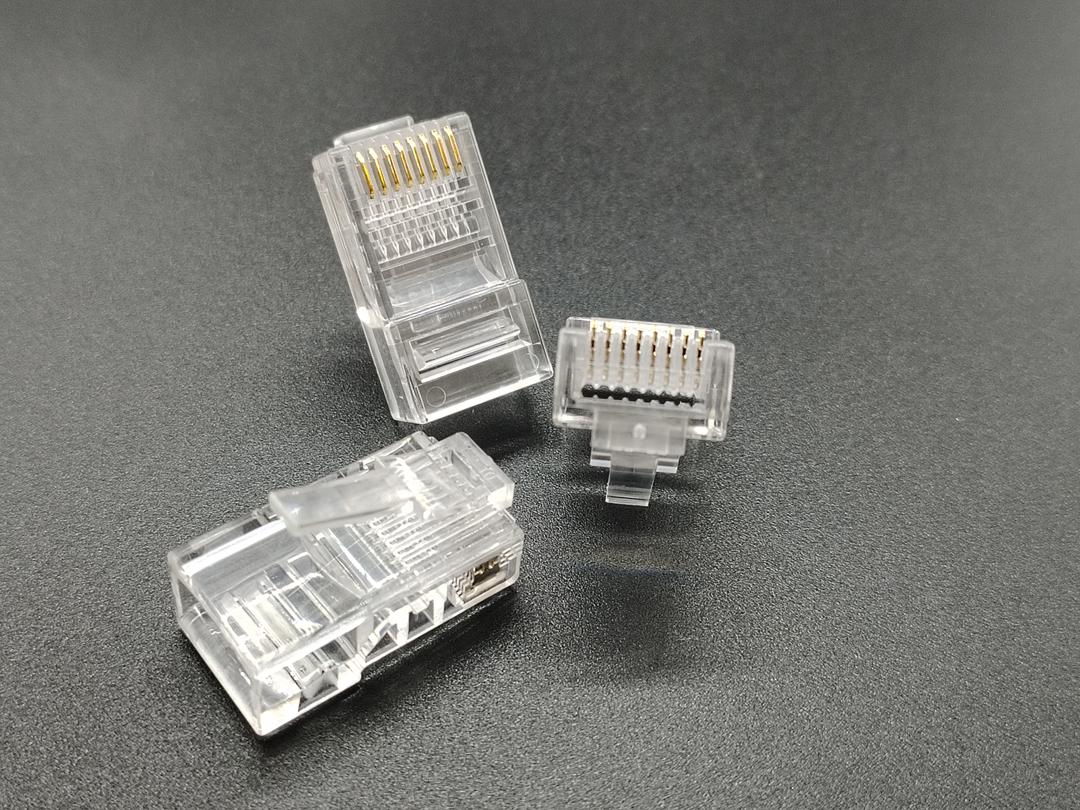

Cat5e RJ45 Connector Pass-Thru 100count
Cat5e RJ45 Connector Pass-Thru 100count
OUT OF STOCK
Regular price
$15.00 CAD
Sale price
$15.00 CAD
Regular price
$100.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
100 count package
Cat 5e Pass-Thru connectors are connectors made of a single piece and follow the same assembly process. Open-end Pass-Thru connectors have multiple advantages compared to standard closed end connectors. Before crimping, the order of conductors can be checked. The conductors that pass through the connector are inserted deep enough to be pierced by the pin underneath. The cable can be either pushed or pulled into the connector to ensure that the twisted pairs are in close proximity to the pin contacts and that the jacket is securely seated beyond the primary strain relief, resulting in a reliable connection.
SPECIFICATIONS:
- ELECTRICAL:
UL APPLICATIONS: 250 VOLTS AC MAX., AT 2 AMPS
DIELECTRIC WITHSTANDING VOLTAGE: 1000 VOLTS AC WITH STAND VOLTAGE TIME: 60S
INSULATION RESISTANCE: 100 ΜΩ
TERMINATION RESISTANCE: 20ΜΩ ΜAX AFTER ENVIRONMENTAL TESTING.
- MECHANICAL:
CABLE-TO-PLUG TENSILE STRENGTH: 20 POUND MIN.
DURABILITY: 200 MATING CYCLES
- MATERIAL & FINISH:
HOUSING: POLYCARBONATE, UL94V-0 OR UL94V-2
COLOR: TRANSPARENT
CONTACT BLADE: COPPER ALLOY
CONDUCTOR: STRANDED OR SOLID WIRE, 24AWG, 26AWG (O.D. WIRE FROM .037 [.96] ΤΟ .040 [1.02])
GOLD PLATING: Fμ":3μ"; 50μ"
REGULATORY COMPLIANCE:
CE2011/65/EU (ROHS DIRECTIVE)
